PCIe Gen5 資料中心解決方案

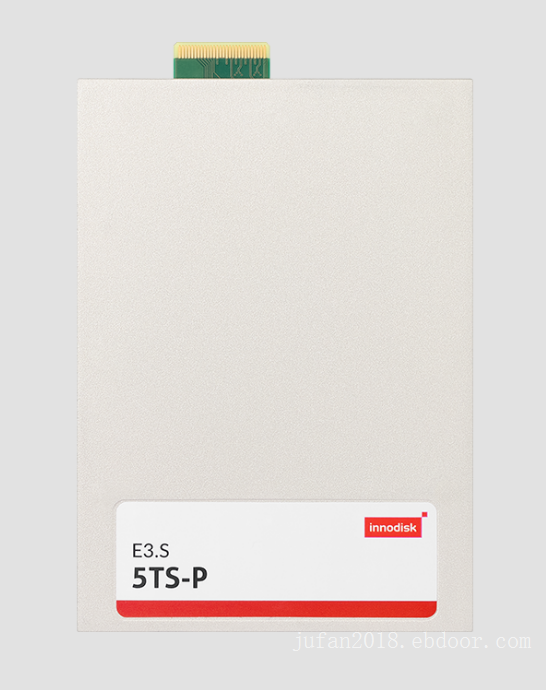

E3.S 5TS-P

特點

?提供高達 14GB/s 讀取與 10GB/s 寫入效能

?單一 E3.S 硬碟最高支援 7.68TB 容量

?提供 1 DWPD 耐用度與 5 年保固，確保長期穩定運行

?支援斷電保護 PLP（iCell）技術，為 SSD 提供斷電保護

?規格表

Model NameE3.S 5TS-P

Flash Type3D eTLC

InterfacePCIe Gen 5 x4

Form FactorE3.S

Capacity1.92TB ~ 7.68TB

Sequential R / W (MB/sec, max.)14,000 / 10,000

TBW (Max.)14,000 (Enterprise Workload)

Storage Temperature-40°C ~ 85°C

Max. Power Consumption25W

Max. Channels16

External DRAM BufferＹ

FeaturesPLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.

SeriesData Center SSD

Dimension (W x L x H/mm)76.0 x 112.75 x 7.5

Vibration20G@[7 ~ 2000Hz]

Shock1500G@0.5ms

MTBF2 million hours

Warranty5 Years

?產品料號

運作溫度標準溫度

(0°C ~ 70°C)

1.92TBDSE3S-1T9IX&#CAH@P

3.84TBDSE3S-3T8IX&#CAH@P

7.68TBDSE3S-7T6IX&#CAH@P

?Operating temperature based on temperature obtained from S.M.A.R.T.

& : 1 = Standard / 2 = TCG Opal

# : Flash mode

@ : F = Kioxia / H = Micron

E3.S 5TS-P specifications are subject to change.
